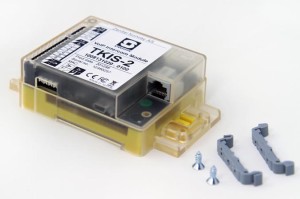

“The STENTOFON VoIP Intercom Module TKIS-2 utilizes the latest technology to create unparalleled audio quality”
for use with AlphaCom IP & Pulse IP systems
Highlights
- STENTOFON Audio Presence – crystal clear audio
- DIN-rail mountable, clips included
- Add VoIP/CCoIP to your parking solution, cash point, vending machine, et al
- Build your own IP Intercom station or help point
- Make your own 10W IP Speaker
- Control relay and I/Os over IP
- Supports AlphaCom, Pulse and SIP (for use with any IPBX)
- Supports a wide set of IP networking standards
- Remote software upgrade, configuration and monitoring
- Operating temperature range -40° to 70° C / -40° to 158 ° F
- Powered from the IP network cable using Power over Ethernet (PoE)
- Advanced audio technology like automatic gain and volume adjustment, background noise cancellation, open duplex, etc.
Description
VoIP Intercom Module TKIS-2 Description
The STENTOFON VoIP Intercom Module utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, Automatic Volume Adjustment, MEMS microphone support, and a 10W Class D amplifier.
These features, in conjunction with STENTOFON’s 65+ years of experience with acoustic technology are only a few of the many factors that make our audio quality second to none.
Specifications
AUDIO | |
Noise cancelling - suppression of musical noise | YES |
Noise cancelling - suppression of static noise | YES |
Noise cancelling - suppression of rapidly changing noise | YES |
Codecs | G.711, G.722, G.729 |
Frequency range, G.722 Codec | 200 Hz – 7000 Hz |
Audio technology | Modes: Full open duplex, switched open duplex, Adaptive jitter filter, Local tone generator, Audio mixing - 3 channels, Sound level detection (scream alarm), Automatic gain control (microphone), Automatic volume adjustment |
Internal speaker amplifier | 10 W class D |
Supported microphone technologies | Digital MEMS, omnidirectional microphone. Electret omnidirectional microphone |
Recommended loudspeaker impedance | 8 ohm |
HARDWARE | |
Ethernet connector | 1 x RJ 45 |
All other connectors | Tool less, spring loaded, vibration proof terminals |
General inputs and outputs | 6 (configurable) |
Outputs | 12mA as LED drivers |
Change-over relay (NO+NC+COM) | Max: 250VAC/220VDC, 2A, 60W |
Power options | PoE and or external power supply |
PoE (power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) |
External power supply | 24 VDC (16 – 48 V) |
Power consumption | Idle 1.8W, max 12W (depending on volume) |
Audio line out / induction loop signal | 600 Ohm |
NETWORKING AND PROTOCOLS | |
Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, STENTOFON CCoIP® , NTP |
LAN protocols | Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x) |
Management and operation | HTTP/HTTPS (Web configuration) DHCP and static IP + STENTOFON Pulse™. Remote automatic software upgrade. Centralized monitoring |
Advanced supervision functions | E.g. network test, tone test, status reports |
SIP support | RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info) |
DTMF support | RFC 2833, 2976 (SIP info) |
ENVIRONMENT AND COMPLIANCES | |
Operating temperature range | -40° to 70° C / -40° to 158 ° F |
Storage temperature range | -40° to 70° C / -40° to 158 ° F |
Relative humidity | < 95% not condensing |
EMC | CE and FCC Part 15 |
Certificates | UL 60950-1, cUL 60950-1, CB to IEC 60950-1 |
OTHER SPECIFICATIONS | |
IP address information | Speaks IP address after system boot (requires connected loudspeaker) |
Country of manufacture | Poland |
Dimensions (HxWxD) | 32 x 117 x 71 mm |
Weight | 0.1 kg / 0.2 lbs |
Encapsulation material | ASA plastic |
DIN-rail clips | Wago 209 (included) |
