for use with AlphaCom , IC-Edge & Pulse IP systems
Features
- Compatible with AlphaCom, IC-EDGE and iPBXs (SIP)
- Designed to deliver CCoIP® – Critical Communication over IP
- Vandal and water-resistant
- Designed in stainless steel (AISI 316L) to withstand corrosion
- Remote software upgrade, configuration and monitoring
- Integrated data switch with advanced networking and security functions
- 2 Relay outputs for remote control, e.g. doors, signal lamps and gates
- Powered from the IP network cable using Power over Ethernet (PoE)
- Superb audio quality – high bandwidth codec, active noise cancellation, acoustic echo cancellation and high output power amplifier

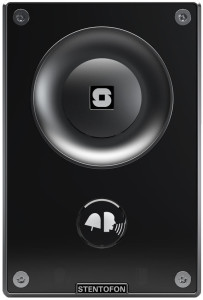

IP Vandal Resistant Substation TKIE – 1008041200 Description
The Vandal Resistant IP Intercom Substation is tough, durable and resilient, and designed for use in the harshest of environments. The station is typically used as a communication, information or emergency point and connects directly to the IP network making it easy to deploy – anywhere and at any distance.
The IP station supports open standards and is compatible with AlphaCom, IC-EDGE and iPBXs using SIP technology. When working in AlphaCom mode, the IP station supports special services only available using the CCoIP protocol, AlphaCom server. Examples of services are emergency broadcast with volume override, CCTV integration, call priority, and AlphaNet multisite networking and event scripting.
Like all Vingtor-Stentofon stations, this IP substation features superb audio quality. This is enabled through a set of advanced technologies such as active noise filtering, acoustic echo cancellation, wideband audio codec, and high power audio outputs.
The station has two relays and 6 configurable I/Os (input, output or LED-driving). The IP substation has an integrated managed data switch providing advanced networking and security features. The integrated switch provides support for:
- Protection from unwanted access
- Quality of Service (QoS) by managing data traffic
- Increased system availability through redundant LAN infrastructure
- Cost-efficient installation by providing shared network connections
To provide maximum availability the station comes with advanced supervision functions. The station line test will detect if there is any faults in the network or station electronics. In addition, the station supports tone test, testing the complete transmission path including microphone and speaker. The status of the stations is reported to AlphaWeb as well as to 3rd party management systems using SNMP, Syslog or OPC.
Specification
| Audio | |
|---|---|
| Noise-cancelling - suppression of musical noise | Yes |
| Noise-cancelling - suppression of static noise | Yes |
| Noise-cancelling - suppression of rapidly changing noise | Yes |
| Codecs | G.711, G.722, G.729 |
| Frequency range, G.722 Codec | 200 Hz to 7000 Hz |
| Audio technology | Modes: Full open duplex, switched open duplex |
| Adaptive jitter filter | |
| Local tone generator | |
| Audio mixing - 3 channels | |
| Sound level detection (scream alarm) | |
| Automatic gain control (microphone) | |
| Automatic volume adjustment | |
| 10 W class D | |
| Electret microphone | |
| 8 ohm |
| Hardware | |
|---|---|
| Ethernet connector | 2 x RJ45 |
| All other connectors | Tool-less, spring-loaded, vibration proof terminals |
| General inputs and outputs | 6 (configurable), 12mA as LED drivers |
| Change-over relays (NO+NC+COM) | 2 relays, max: 60VDC, 2A, 60W |
| Power options | PoE and or external power supply |
| PoE (Power over Ethernet) | IEEE 802.3af standard, Class 0 (0.44W to 12.95 W) |
| External power supply | 24 VDC (16 to 48 V) |
| Power consumption | Idle 1.8W, max 13W (depending on volume) |
| Audio line out / induction loop signal | 600 ohm |
| Construction | |
|---|---|
| Dimensions (HxWxD) | 180 x 92 x 46 mm |
| Weight | 0.8 kg |
| Protection | Vandal-resistant design, 2 mm stainless steel front, tamper proof loudspeaker grill, button and fastening screws |
| Mounting | Flush mount in 50 mm deep back box Surface mount Surface mount with weather hood |
| Frontplate material | AISI 316L |
| Networking and Protocols | |
|---|---|
| Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, Vingtor-Stentofon CCoIP® , NTP |
| LAN protocols | Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x) |
| Management and operation | HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE, Remote automatic software upgrade, Centralized monitoring |
| Advanced supervision functions | E.g. network test, tone test, status reports |
| SIP support | RFC 3261 (SIP base standard) |
| RFC 3515 (SIP refer) | |
| RFC 2976 (SIP info) | |
| DTMF support | RFC 2833, 2976 (SIP info) |
| Environment and Compliances | |
|---|---|
| Operating temperature range | -40° to 70° C / -40° to 158 ° F |
| Storage temperature range | -40° to 70° C / -40° to 158 ° F |
| Relative humidity | < 95% not condensing |
| Ingress protection | With mounting box1008098000 (on wall): IP-44, With mounting box 1008098100 (flush mount): IP-55 |
| EMC | CE and FCC Part 15 |
Three IP Vandal Resistant Substations
The stations on this system normally have two extra buttons for calling locations.
- Call Location One
- Call Location Two
- Cancel
By pressing and holding the call button, you can talk in “Press to Talk” mode, one way forced speech to noisy locations.
Two IP Vandal Resistant Substations to One Desk/Wall Master Station
The Stations on this system have a single call button which connects to the Desk/Wall Master Station.
The Desk/Wall station can call either wall station or can make a “ALL CALL” public address call
