Wall Substation with 3 Direct Dial Buttons – AB709

Wall Substation with 3 Direct Dial Buttons - AB709

Discontinued Pro700 Intercom System

We are sorry the Pro700 Intercom System is no longer manufactured, a small range of spares are available while stocks last.

If you have a station which needs repair we can still make repairs as long as we can get the parts.

Please visit our "Intercom Products Range" page to find an alternative.

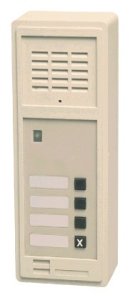

“The AB709 Wall Substation with 3 Direct Dial Buttons is a substation for wall mounting with 3 call buttons plus one cancelling button, “X”
for use with Pro700 system
Features
  • Processor controlled substation
  • Three call button and one cancelling button “X”
  • Built-in loudspeaker and microphone
  • No exchange is required
  • Stations are wired in parallel or Loop
  • Duplex speech
  • Can be surface mounted on the wall
  • Flush mounted using snap-on frame BF636
  • Easily programmable by internal switches

Description

Wall Substation with 3 Direct Dial Buttons – AB709 Description

The Wall Substation with 3 Direct Dial Buttons AB709 is a substation for wall mounting with 3 call buttons plus one cancelling button, “X”. The buttons can easily
be programmed to offer a number of different call functions.
Direct call alternatives to the following numbers are available, starting from the top button and down:
Alt. 1: 11, 12 and 13
Alt. 2: 11, 12 and “Emergency Call”
Alt. 3: 21 (X + 11), Program Distribution (X + 12) and 23 (X + 13)
Alt. 4: 21 (X + 11), Program Distribution (X + 12) and “Emergency Call”
Alt: 5: 13, 16 and 19
Alt. 6: 23, 26 and 29
Alt. 7: 33, 36 and 39
Alt. 8: 43, 46 and 49
The conversation can be cancelled by pressing the “X” button, or can be limited to 30 seconds via switch programming, if nobody is answering the call.
The call will then be automatically disconnected after 30 seconds
The station can receive incoming calls from all the stations in the system. The AA708 consists of a processor and software and shall not be connected to an exchange. All programming is performed via switches inside the station, by following an easy instruction.
The cable layout is very flexible. All stations are wired in parallel in a star or bus configuration. Minimum 2 pairs twisted cable are required, 1 pair for conversation and display data, one pair for DC supply voltage.
An optional 3rd pair can be installed for program distribution (radio).
An external 20 ohms horn loudspeaker can be connected if a higher volume is required.

Specification

Specification

See Datasheet

Datasheet

Datasheet

AB709 3 Button Wall Station

Pro700

Pro700 Intercom System

The Pro700 Intercom System is no longer manufactured, a small range of spares are available, if you have a station which needs repair we can still make repairs as long as we can get the parts.

The Pro700 Intercom System has been replaced by the IP Pulse and AlphaCom Systems.
